Optical Prisms
LaserOptec specializes in manufacturing high precision prisms, included various shapes and configurations, such as right-angle, dispersing, roof, dove, retro-reflecting, penta, wedge prisms, Powell and custom prisms.
Variety and widely optical materials from UV, VIS to IR
Size from 1mm up to 300mm
Cube, Cuboid, Trapezoid, Cone, customized shapes
Custom coatings, AR, HR, Beamsplitter, Polarising
Ultra hard dielectric coatings, Durability, Reliability
Small Quantity and Rapid Prototyping & OEM, Custom, & High-Volume Manufacturing
With more than 20 years experiense of optical manufacturing and coating, LaserOptec offers rapid prototype development for diverse applications, such as Laser, Display, Medical, Analysis, Automotive, etc. for custom optical solutions.
Typical lSpecifications | |
---|---|
Optical Material | N-BK7, UVFS, SCHOTT, CORNING, etc. |
Size | Custom Size, Shape |
Surface Quality | 40-20 Scratch-Dig |
Surface Flatness | <1/4λ@632.8nm |
Angles Accuracy | <1 arc min |
Coating | AR, HR, Beamsplitter, Custom coating |
Clear Aperture | >90% of central dimension |
Applications:
Deviate beam, laser, Image rotation, Image 90˚ deviation
Please contact us for more specific applications for your needs.
- Right Angle Prisms
- Roof Prisms
- Dove Prisms
- Penta Prisms
- Pyramid Prisms
- Corner Prisms
- Light Pipes
- Hexahedron Prisms
- Light Guides
- retro-reflecting Prisms
- Brewster Angle Prisms
- Powell Prisms
- PBS
- X-Cube
- NPBS

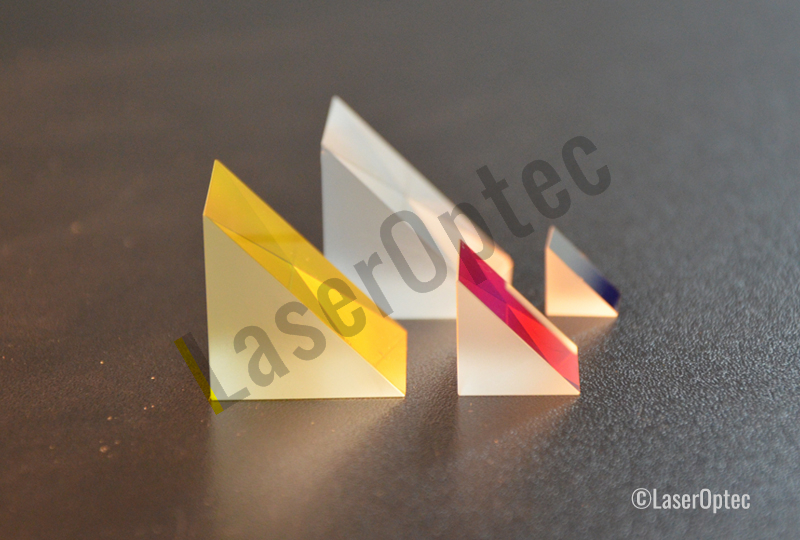

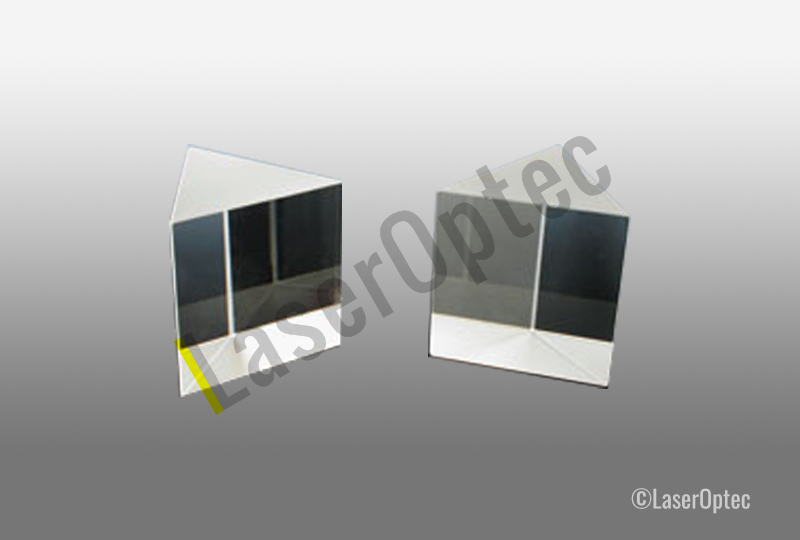

Right Angle Prisms

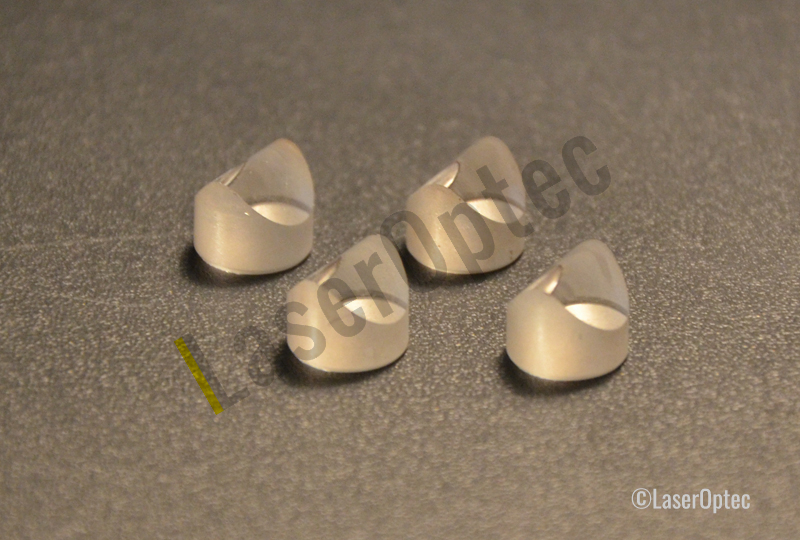

Powell Prisms

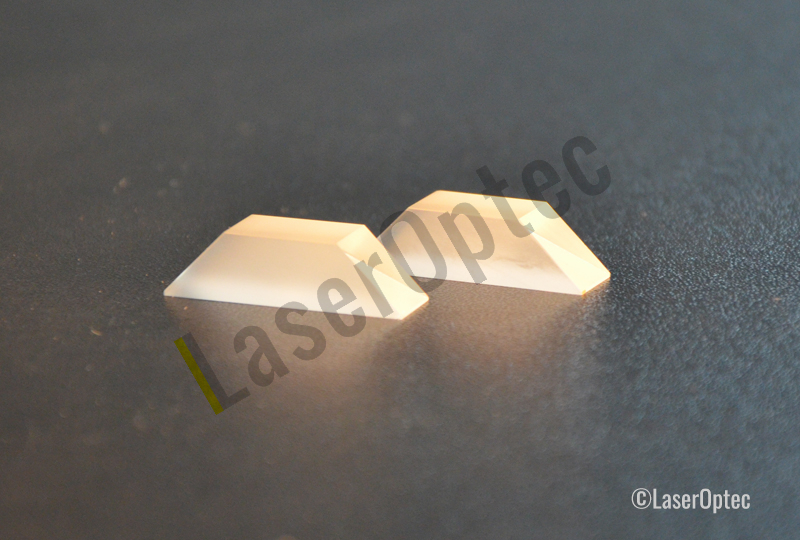

Dove Prisms

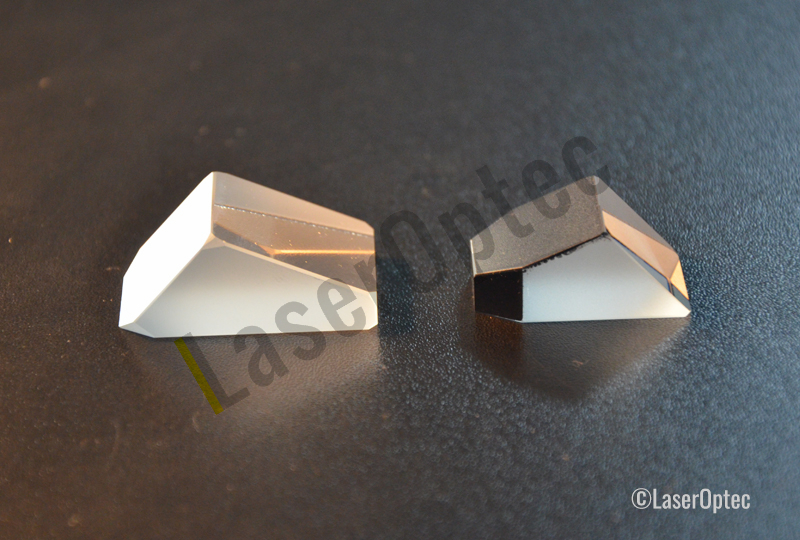

Roof Prisms
Penta Prisms
Brewster Angle Prisms
Light Pipes
We offer custom prisms of customized shapes, configurations, specifications and coatings, please contact us for more information.
