LS Series High Resolution Line Scan Lenses
Image Circle from Ø28mm to Ø80mm, a variety of magnification, suitable for 4K7μ, 8K5μ, 8K7μ, 16K5μ, 16K3.5μ line scan cameras.

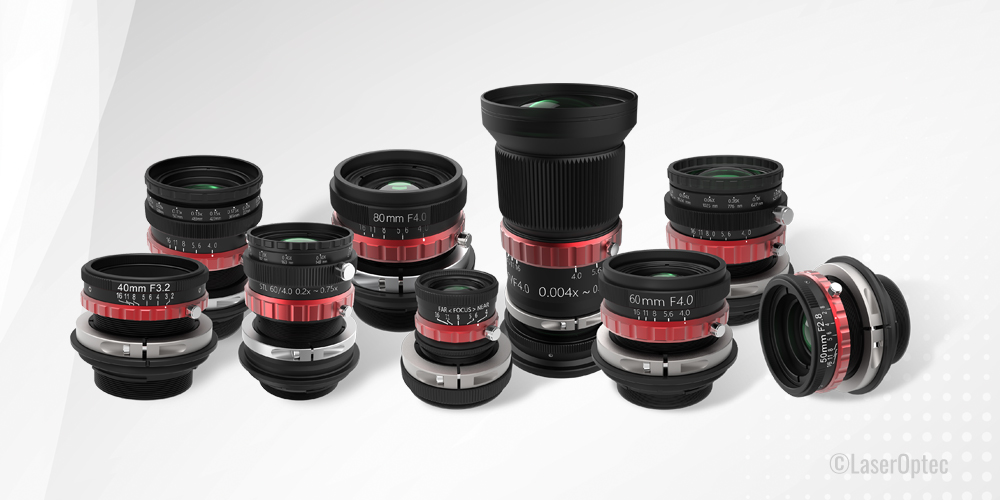

The high resolution LS series line scan lenses designed and produced by LaserOptec, with a great imaging quality, ensuring reliable results and features of compact, robust, and lockable in distance and apertures, are widely used in industrial and machine vision field.
Features:
Image circle from Ø28mm~ Ø80mm
A variety of magnification
Suitable for 4K7μ, 8K5μ, 8K7μ, 12K5μ, 16K5μ, 16K3.45μ line scan cameras
Optional adapters, F, M42, M48, M58, M72, M90
Compact, robust, lockable in distance and apertures
Optional athermalization lens, supports extremely cold and hot working environments
Custom Anti-shock lens requirements is available
Applications:
Web inspection, Quality control, Surface inspection, Line Scan applications, Machine vision
Printing test, LCD test, glass test, solar energy test, lithium battery test, circuit board test, etc
Specifications
| Model | f(mm) | FNO | IF(mm) | Magnification(X) | WD(mm) | FOV(mm) | Mount(mm) | Datasheet |
|---|---|---|---|---|---|---|---|---|
| LS2530 | 25 | 3.0~16 | 30 | 0.0~0.2 | 135~2491 |
Ø28IC:140~2800 Ø14IC:70~1400 |
M42x1.0 | Download |
| LS2540 | 25 | 4.0~16 | 30 | 0.02~0.07 | 350~1245 |
Ø28IC: 415~1444 |
M42x1.0 | Download |
| LS3540 | 35 | 4.0~16 | 30 | 0.0~0.5 | 83~3512 |
Ø28IC:57~2867 Ø14IC:28~1433 |
M42x1.0 | Download |
| SWIR4514 | 45 | 1.4~16 | 30 | 0.16~0.9 | 320~550 |
Ø28IC: 167~305 |
M42x1.0 | Download |
| LS4032 | 40 | 3.2~16 | 43 | 0.04~0.33 | 132~1044 | Ø43IC:130~1075 | F-Mount, M42, M48, M58, M72, M90 | Download |
| LS5028 | 50 | 2.8~16 | 43 | 0.04~0.33 | 174~1275 | Ø43IC:130~1075 | F-Mount, M42, M48, M58, M72, M90 | Download |
| LS00304 | 60 | 4.0~16 | 43 | 0.03-0.4 | 171~2010 | Ø43IC:108~1442 | F-Mount, M42, M48, M58, M72, M90 | Download |
| LS00402 | 60 | 4.0~22 | 60 | 0.04~0.2 | 328~1524 | Ø60IC:300~1500 | F-Mount, M42, M48, M58, M72, M90 | Download |
| LS0275 | 60 | 4.0~22 | 60 | 0.2~0.75 | 108~328 | Ø60IC:80~300 | F-Mount, M42, M48, M58, M72, M90 | Download |
| LS6040 | 60 | 4.0~16 | 60 | 0.04~0.33 | 214~1536 | Ø60IC:181~1500 | F-Mount, M42, M48, M58, M72, M90 | Download |
| LS4056 | 40 | 5.6~16 | 60 | 0.04~0.25 | 186~1044 | Ø60IC:231~1441 | M58, M72, M42, M48, M90 | Download |
| LS4040 | 40 | 4.0~16 | 60 | 0.004~0.227 | 170~9987 | Ø60IC:260~15434 | M72, M58 | Download |
| LS8040 | 80 | 4.0~16 | 80 | 0.04~0.33 | 303~2071 |
Ø80IC:242~2000 Ø60IC:172~1500 |
F-Mount, M42, M48, M58, M72, M90 | Download |
Custom requirements and OEM solutions are available, such as magnification, wavelength, focal length, working distance, FOV, etc.
